Overhead Line Accessories

Ensto's overhead line accessories are reliable, installer-friendly products for low and medium voltage distribution networks. They are designed and proven to last for decades even in the most challenging weather conditions and demanding environments all over the world.
Full covered conductor solution in medium voltage overhead lines.

More Protection for Electricity Line

Swedish DSO Vattenfall built a new full covered conductor solution line in the northern Sweden to protect the overhead line network. With the FCCS, they achieve a stronger and durable network with a long service life, capable of withstanding snow and ice loads, which can strain the line and cause faults.
Read More

Reliable Electricity Distribution

Electrical network failures and service interruptions can occur for several reasons, such as trees falling on electricity lines, severe weather conditions, interference by birds or small animals, and disruptions from excavation or maintenance activities. To prevent failures or reduce their effects, durable and innovative solutions are essential for electricity distribution networks.

Ensto´s overhead line accessories for low and medium voltage networks play a key role in building reliable and long life-cycle electricity distribution networks. They are designed and proven to last for decades even in the most challenging weather conditions such as cold, hot, and stormy environments all over the world. The accessories are designed in close collaboration with our customers to ensure easy installation and use, minimal maintenance requirements, and a reduced environmental impact throughout their lifecycle.

A Wide Selection for Various Solutions

LV ABC Solution

Different countries employ various methods to safeguard their low-voltage overhead line networks, but the core challenge remains consistent: preventing power loss during fault conditions. This is why it is essential to have reliable systems in place that minimize potential failures in the low-voltage network, ensuring a continuous and safe supply of electricity.

Wide Range of Accessories for Low Voltage

Ensto offers a wide range of accessories and product packages designed for various Low Voltage ABC (Aerial Bundled Cable) systems such as four core, insulated messenger wire and uninsulated messenger wire. They are distinguished by their insulated conductors and bundled design, offering enhanced protection against external conditions. The choice of solution is influenced by the types of conductors defined in the national network construction requirements.

Mechanical tensioning accessories such as suspension clamps and tension clamps are dependent of the used system, while many other accessories such as insulation piercing connectors and pole fuse switch disconnectors are uniform for all three low-voltage solutions. Ensto has decades of thorough knowledge and experience of building and protecting low voltage overhead line networks in several countries worldwide and together with hundreds of customers.

View Products: LV Overhead Line Accessories

LV ABC Handbook for Low Voltage Overhead Line Design

We have compiled our expertise into the LV ABC Handbook, which includes products and ready-made structures for various pole types. It helps to design medium voltage overhead lines efficiently.

Download the Handbook

Full Covered Conductor Solution

Covered conductors (CC) were designed to enhance the reliability of electricity distribution in medium voltage overhead networks. Time has assured the covered conductor of being an extremely functional and reliable solution. Faults caused by snow, wildfire, ice, or storms have decreased remarkably.

However, ever-changing weather conditions, climate change and growing demand for an uninterrupted network, more is expected of systems. Ensto’s advanced Full Covered Conductor Solution (FCCS) provides even more complete protection for the lines, further improving both the safety and reliability of the network.

Striving for Complete Protection

In addition to covering the conductors, the FCCS also covers other live parts of the line such as insulators, suspension, and tension clamps, as well as insulation piercing connectors. Accessories can either be protected with dedicated bird covers or, in some products, the live parts are integrated within the design, as seen in insulation piercing connector SLW26. While protecting the electricity line against wildlife-related outages, wildlife can also be protected and save them from our infrastructure.

Is also worth noting, that FCCS's space-saving design reduces the need for large-scale forest clearing and preserves natural habitats. Covered conductor (CC) enables 40% narrower clearances for line corridors through the forest compared to a standard bare line, resulting in significant space savings. With parallel FCCS line structure, the space saving is even bigger.

Extensive Testing Gives Reliability

Ensto’s accessories to covered conductor lines are electrically and mechanically designed for the best performance and safety. Accessories are tested according to the EN 50397-2 standard which, compared to earlier national standards, is substantially more demanding and covers the accessories designed for such solutions more extensively. This brings a whole lot of reliability for the Covered Conductor Solution.

Specific Requirements for Covered Conductors

  • Only accessories designed and approved for the conductor shall be used:
    • Ensto accessories for FCCS include insulators, tension and suspension clamps, arc protection devices, current limiting devices, connectors, bird protectors and crossarms.
  • Arc Protection devices must be used on lines vulnerable to overvoltage:
    • An Arc Protection device safeguards conductors and network components, ensuring disruption-free electricity distribution. These devices should be installed in areas prone to overvoltage, such as fields, hills, buildings, yards, traffic routes, and sports fields. The choice of protection depends on the network's short-circuits values.
  • Substations must have tripping earth-fault protection devices and alarming secondary devices.

With FCCS is achieved a stronger and more durable network with a long service life and higher-quality electricity, capable of withstanding even challenging weather conditions such as snow and ice loads, which can strain the line and cause faults or prevent wildfires caused by violent storms and lightning.

View Products: MV Overhead Line Accessories

FCCS Handbook for Medium Voltage Overhead Line Design

We have compiled our expertise into the FCCS handbook, where you can find detailed information on specialized pole structures, accessories, crossarm service limitations, and conductor regulation tables. It helps to design medium voltage overhead lines efficiently.

Download the Handbook

Bare Conductor System

The most common common approach for building medium voltage overhead lines involves using bare conductors without additional insulation. Although this system is widely used, bare lines can be exposed to accidental contact and wildlife interference. It can lead to service disruptions and increases the risk of damage to electricity networks and thus the risk of natural disasters such as wildfires. To ensure reliable electricity distribution and prevent disruptions the bare conductors require durable accessories designed for the system.


Wide Range of Accessories to the System

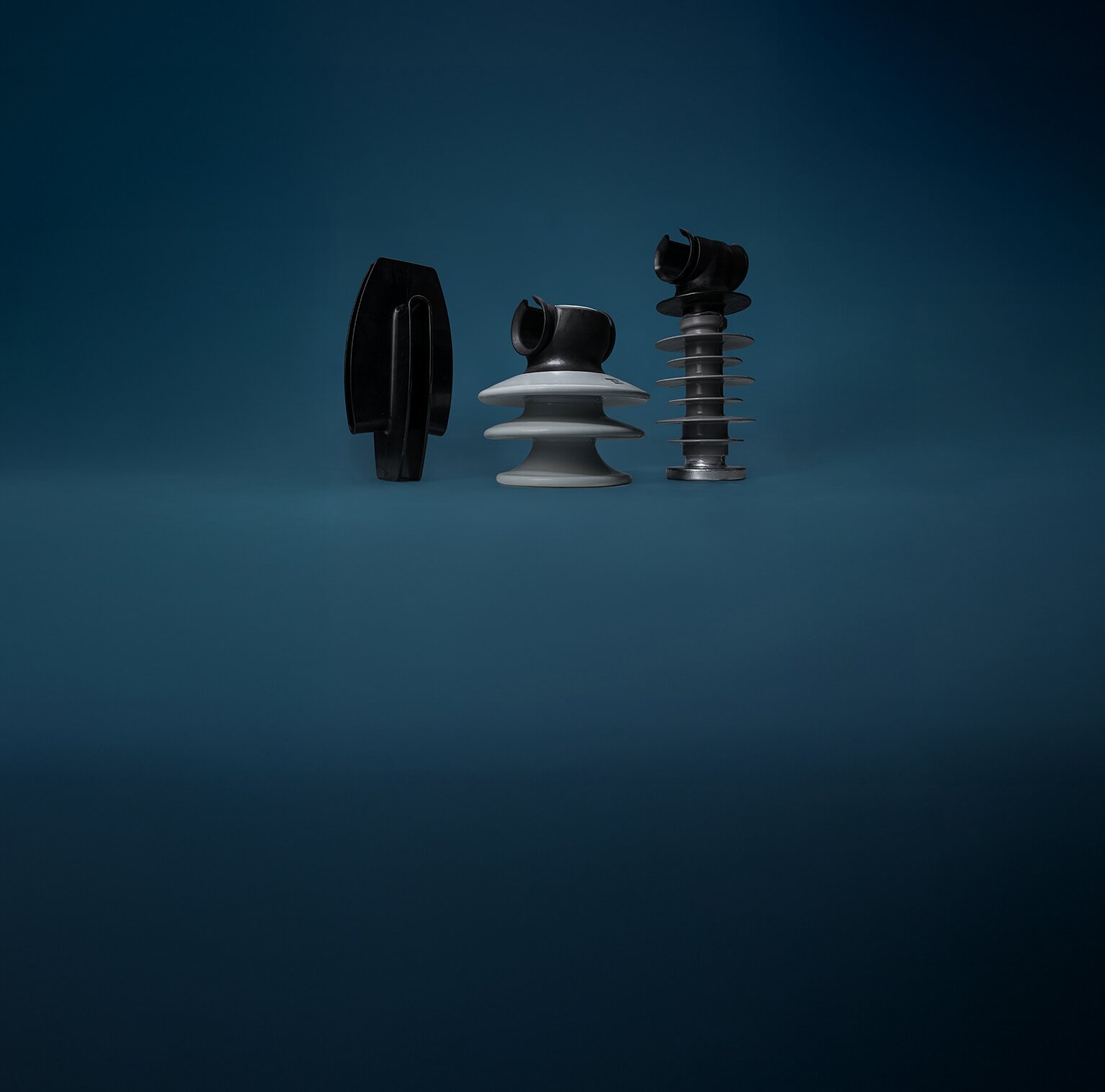

Ensto’s wide range of accessories provides easy and cost-effective solutions for bare conductor system that comply with the most used European standards. With our accessories like insulators, tension and suspension clamps, connectors, wire markers, crossarms, and tools we have built a line for decades all over the world. They are easy to install and have a long service life in extremely hard climatic conditions. Our assortment covers most common conductors.

Covered conductors (CC) give more protection for the overhead lines. Choosing a covered conductor solution with Ensto accessories (FCCS) is guaranteed to pay for itself in the form of fewer faults, lower maintenance costs, and higher-quality electricity.

View Products: MV Overhead Line Accessories



Universal Cable System

The universal cable offers flexibility in selecting the route of the electricity network, as the cables can be installed in demanding environments, whether underground, in water, or in the air.

The core principle of the system is that the same cable is used consistently throughout the entire section, only the most suitable placement method is chosen for each part of the line. A simple and cost-efficient solution when changing from the underground to the air.

Special Accessories Designed for the System

Ensto has designed a selection of special overhead line accessories for pole-mounted universal cable systems. Our long experience of demanding circumstances, cold and snowy as well as hot and humid, has helped us to develop reliable and safe accessories for the system. The compatibility of accessories with cables must be checked from the cable manufacturer.

View Products: MV Overhead Line Accessories

When the cable is installed underground, Ensto's wide selection of underground cable accessories are naturally appropriate for the installation.

View Products: MV Underground Cable Accessories

Professional Service

Ensto is proud to provide high-level customer services for our products and solutions, which ensures the success of our customer's operations. Contact local sales representative for more details on products and solutions, technical support or training.



Medium voltage full covered conductor solution in north.

FCCS in Northern Weather Conditions

With the full covered conductor solution, the Swedish DSO Vattenfall achieves a stronger network with a long service life, capable of withstanding northern weather conditions such as snow and ice loads, which strain the line and cause faults.

Read More
Polymeric stay wire insulator SDI69.

Strength and Durability

The new stay wire insulator features an innovative design, offering exceptional robustness and durability with a minimum breaking load of 130 kN – outperforming porcelain and composite insulators. It has excellent resistance to electrical stress and is both shockproof and remarkably lightweight at just 0.8 kg, making it easy to handle and install.

Read More

Other Solutions

Underground Cable Accessories

Ensto’s accessories for low and medium voltage underground cable networks include complete, functional and reliable product packages with heat shrink and cold shrink technologies. Under the ground, the cables are protected against the demanding climate which makes the cable network very durable. The cable accessories are easy to install, safe to use and tested according to international standards’ requirements

Read More
