Tension clamp SO95

Tension clamp SO95

Used for the tensioning of cables dia. 11-19 mm with round shape. Light weight, no loose parts. The clamp is easy to install, without cutting the cable. The body is made of weather and UV-radiation resistant thermoplastic and the bail of hot-dip galvanized steel.

  • Help in building a distribution network with a life cycle of 40-50 years.
  • Type tested and hence, always reliable.
  • Easy-to-install design to make the installer’s work easier and faster.
Code SO95
GTIN 6418677405174
Name Tension clamp
For cable ø 11-19 mm
Contact sales

Technical information

Technical specifications

Certificates
Standards EN 50483-3

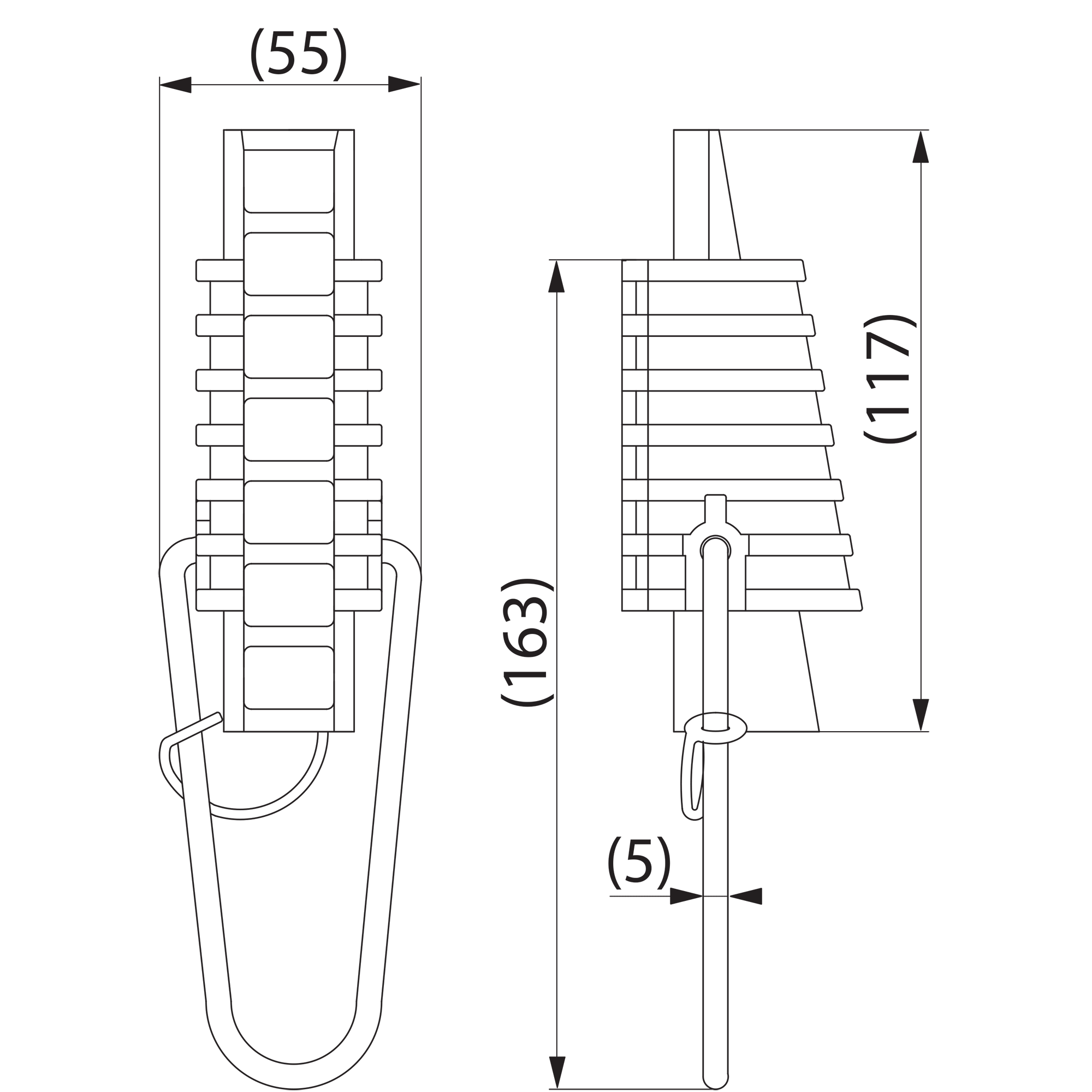

Dimensions
Weight 0.11 kg
Height 52 mm
Width 55 mm
Length 170 mm
Cable diameter 11-19
Mechanical
SMFL 0.75 kN (⌀11 mm), 2.0 kN (⌀19 mm)
ETIM
ETIM Class EC003516
Type of accessory/spare part Other

Packaging

Carton
Size 50 pcs
Depth 375 mm
Height 157 mm
Width 250 mm
Weight 5.742 kg
Volume 14.71875 l
Pallet package
Size 2700 pcs
Depth 1200 mm
Height 1140 mm
Width 800 mm
Weight 330.068 kg
Volume 1094.4 l
