Cabinet RY250453

Cabinet RY250453

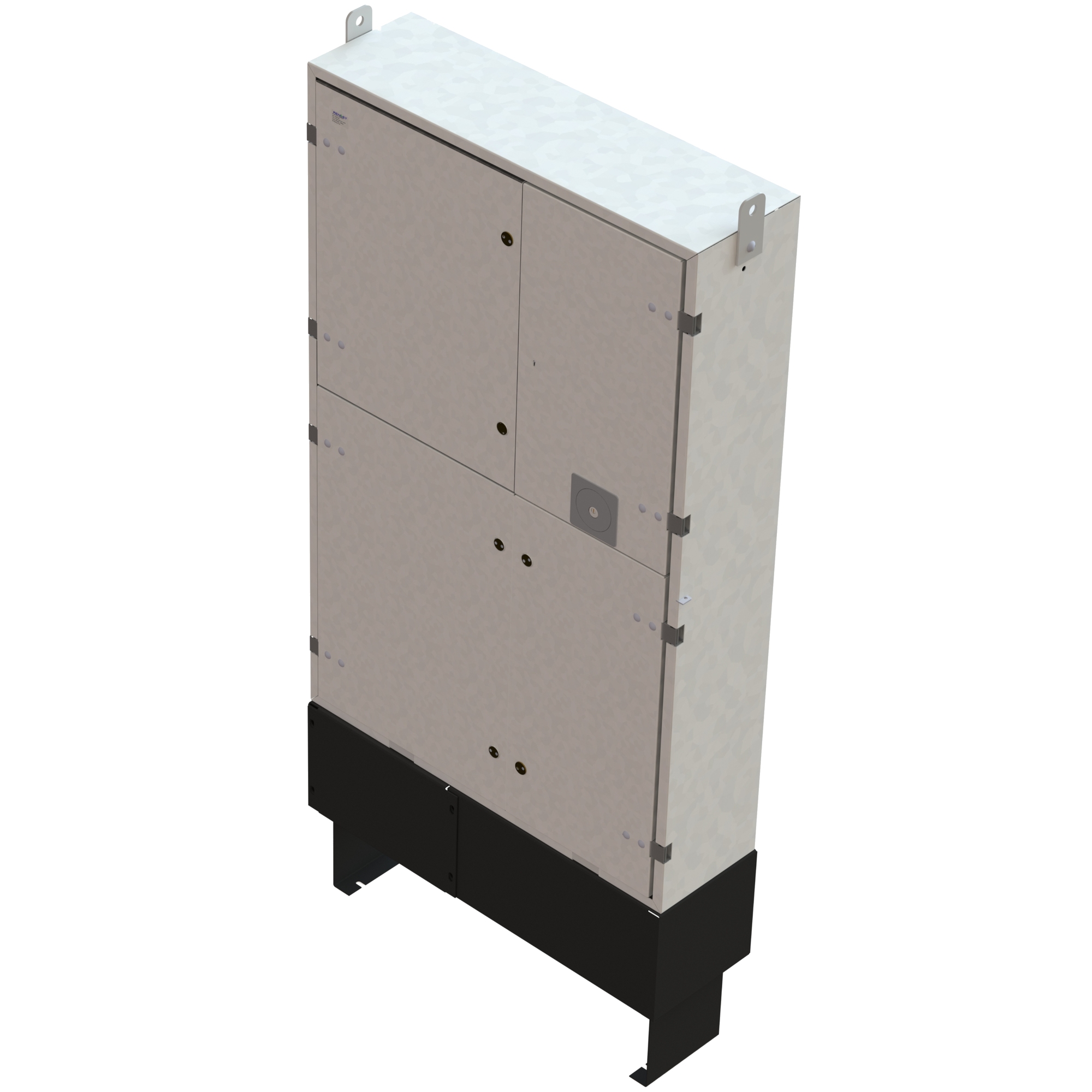

3mm H/D Galvanise, Free standing enclosure, Doors are capable of opening 180 degree, Four Doors, Fire Retardant Backboards, Yale Locking Top Right Door, 8mm Tri-Locks on other Doors, Key safe Installed, Plinth with Removable Face, Customer Compartment Isolated, CT Chamber & Cable Trunking (sealed) Installed, Modem Entry Access, IP44 Rated, ESB Approved Design

  • Robust structure
  • 40 year lifetime expectancy
Code RY250453
GTIN 5391540620311
Name Cabinet
RENCAB Populated With 250A MCCB
Contact sales

Technical information

Technical specifications

Dimensions
Weight 152 kg
Height 2264 mm
Width 1100 mm
Length 320 mm
ETIM
ETIM Class EC001040
Rated permanent current Iu 300 A
Degree of protection (IP), front side IP44
