Outer sheath removal tool ST281

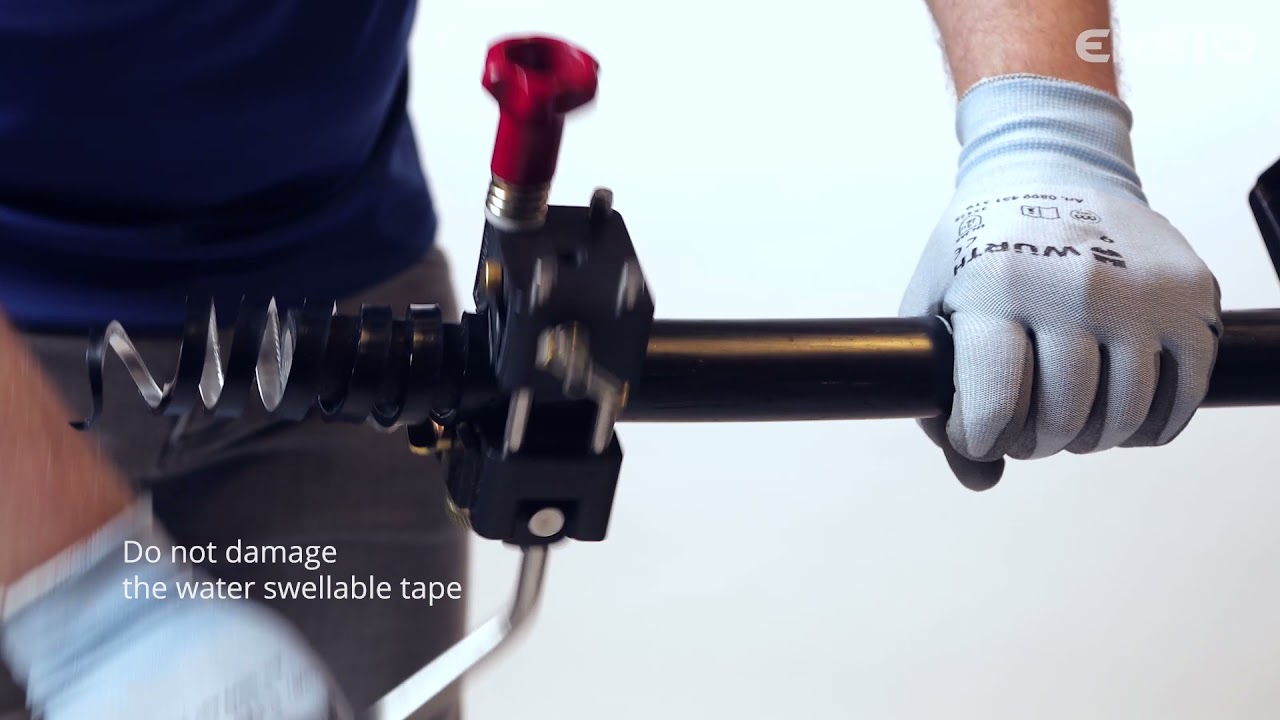

The tool removes the MV cable outer sheath and/or aluminium laminate. Suitable for cable Ø 16-40 mm. The tool can also be used to remove the insulation.
| Code | ST281 |
| GTIN | 6438100320232 |
| Name | Outer sheath removal tool Outer sheath/aluminium laminate removal tool Ø16-40 mm |
| Dimensions | |
|---|---|
| Weight | 1.24 kg |
| Height | 100 mm |
| Width | 85 mm |
| Length | 290 mm |
| Others | |
| ETIM Class | EC000163 |
| ETIM | |
|---|---|
| Depth of notch adjustable | Yes |
| Spiral cut | Yes |
| Exchangeable knives | Yes |
| Carton | |
|---|---|
| Size | 10 pcs |
| Depth | 400 mm |
| Height | 150 mm |
| Width | 300 mm |
| Weight | 12.900 kg |
| Volume | 18 l |
| Pallet package | |
| Size | 360 pcs |
| Depth | 1200 mm |
| Height | 1050 mm |
| Width | 800 mm |
| Weight | 484.400 kg |
| Volume | 1008 l |
| Name | Code | GTIN | ||
|---|---|---|---|---|
|
Spare blade ST281.1for ST281 |
ST281.1 | 6438100330002 | See product |
Insulation removal set for 20 kV cables
Code: ST252
GTIN: 6418677457418
for ST252
Code: ST252.1
GTIN: 6418677457425
Insulation removal handle for inserts ST265-273
Code: ST261
GTIN: 6438100314446
Insulation removal insert 20kV 25mm² for ST261
Code: ST265
GTIN: 6438100316099
