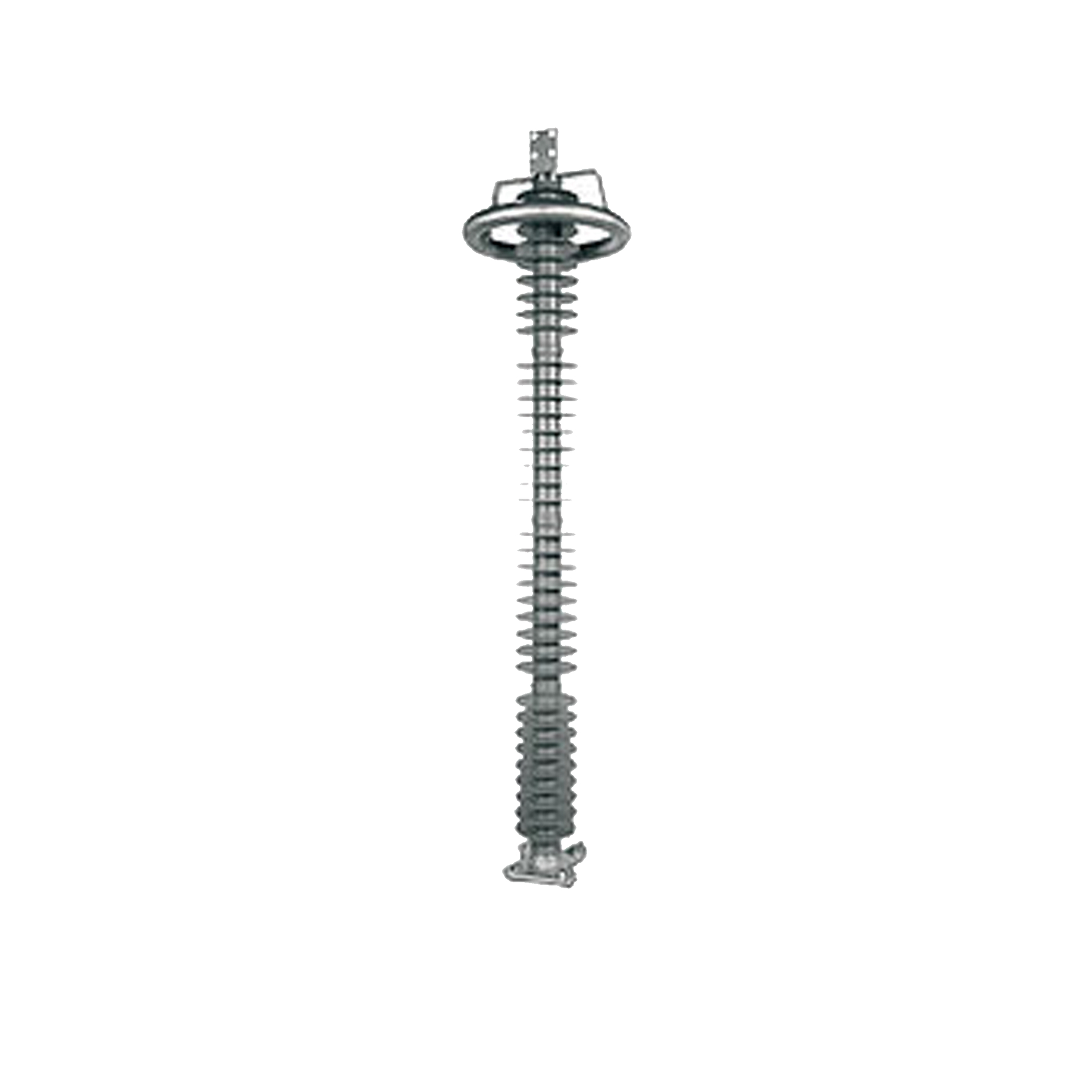

Surge Arrester NX7260106
Station Class Surge Arrester with various options for indoor/outdoor installation on systems up to 170 kV
| Code | NX7260106 |
| GTIN | 03700540429275 |
| Name | Surge Arrester High Voltage surge arrester VARISIL™ HI up to 144 kV |
| Dimensions | |
|---|---|
| Weight | 8.75 kg |
| Standards | |
| Standards | IEC 60099-4 |
| Features | |
| Site pollution severity class | e (IV) |
| Range of rated voltage (Ur) | 5…144 kV |
| High current impulse withstand | 100 kA |
| Long duration current impulse withstand | 660 A |
| Rated short circuit current (Is) | 63 kA |
| Specified short-term load (SSL) | 1000 Nm |
| Specified long-term load (SLL) | 800 Nm |
| Diameter of weathersheds | 150 mm |
| Nominal discharge current (In) | 10 kA |
| Arrester Classification-Designation | SL |
| Line discharge class | 2 |
| Repetitive charge transfer rating (Qrs) | 1.2 C |
| Thermal energy rating (Wth) | 5 kJ/kV |
| Temperatures | |
| Ambient temperature | -50°C…+50°C |
| Carton | |
|---|---|
| Size | 1 pcs |
| Weight | 8.800 kg |
| Pallet package | |
| Size | 12 pcs |
| Weight | 110.600 kg |
