Underground Cable Accessories

Ensto’s accessories for low and medium voltage underground cable networks include complete, functional, and reliable product packages with heat shrink and cold shrink technologies. The cable accessories are easy to install, safe to use and tested according to international standards’ requirements.

Swedish E.ON Trusts Cold Shrink Technology

Ten years ago, the Swedish distributor system operator E.ON made the decision to switch to cold shrink technology in underground cable installations. Cold shrink with an integrated geometric stress control has proven to be a highly effective technical solution for their needs.

Aim For a Weatherproof Network

The share of underground cabling in electricity distribution networks has increased considerably over the last decade, when electricity distributor operators aim to improve the resilience against changing climate conditions. Under the ground, the cables are protected against the demanding climate which reduces the fault frequency of the networks.

The accessories used in underground cabling play an essential role in ensuring reliable and safe electricity distribution. The accessories enable proper cable connections and terminations and protect the cable from physical stress, moisture and external contaminants. Ensto has an extensive range of accessories for low and medium voltage underground cable networks including complete, functional and reliable product packages with heat shrink, cold shrink and hybrid technologies.

Our comprehensive solutions feature joints, terminations, and screened separable connectors, all equipped with our high-quality mechanical connectors or lugs to ensure optimal performance and long-lasting durability.

Solutions

Cable Connectors

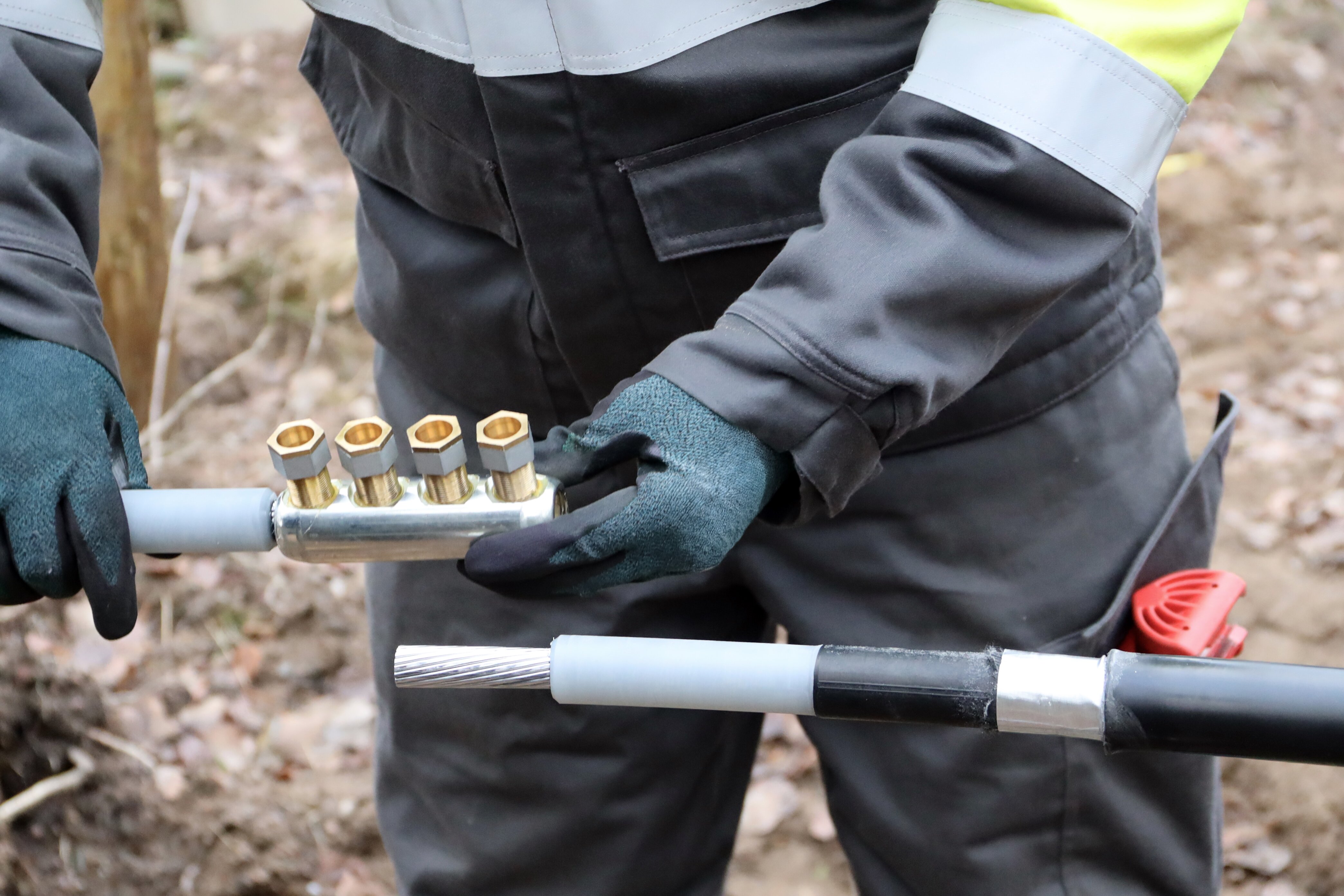

A prominent part of the underground cable accessories are the connectors at the joints. Ensto’s mechanical cable connectors have been designed to make installation as easy and effortless as possible. All cable connectors are equipped with shear-head bolts, which guarantee a reliable and uniform installation without the need for special tools.

Connectors and Lugs for Low Voltage

The comprehensive range of mechanical connectors and lugs for low voltage cables covers a wide range of commonly used cross-sections between 6 to 300 mm². The connectors and lugs can be used on cables with both aluminum and copper conductors up to 1 kV and are suitable for solid, stranded, sector and round conductors.

Thanks to the shear-head bolt construction no compression tools are needed. The required force is achieved by tightening the bolt until it breaks off All connectors and lugs are longitudinally watertight.

View Products: LV Mechanical Cable Connectors and LV Mechanical Cable Lugs

Connectors and Lugs for Medium Voltage

Ensto’s medium voltage connector and lug offering covers a wide cross-section range from 10 mm² to 800 mm². The connectors and lugs can be used on cables with aluminum and copper conductors up to 42 kV and are suitable for solid, stranded, sector and round conductors.

The connectors and lugs have a screw design with stepless shearing – the screw always breaks at the correct point during installation at the surface level. This is important because underground cable installations are often made under very challenging conditions.

The electrical properties of the shapes are optimized by simulations – the effect of the electric field is minimized at each location and there are no sharp edges at all. One of the newest features is a connectors' semi-conductive cap, which makes the connector installation faster and it is not needed to add mastic in the screw holes.

The products are type tested according to the newest standards requirements in Ensto's own accredited laboratory, which ensures high quality of the products.

View Products: MV Mechanical Cable Connectors and MV Mechanical Cable Lugs

Designed for a Long Service Life

All the accessories are manufactured of high-quality materials and designed for a long service life, minimal need for maintenance, and a low life-cycle impact on the environment. The Ensto Pro customer training guarantees flawless cable network construction and effective utilization of Ensto products and solutions.

Professional Service

Ensto is proud to provide high-level customer services for our products and solutions, which ensures the success of our customer's operations. Contact local sales representative for more details on products and solutions, technical support or training.
