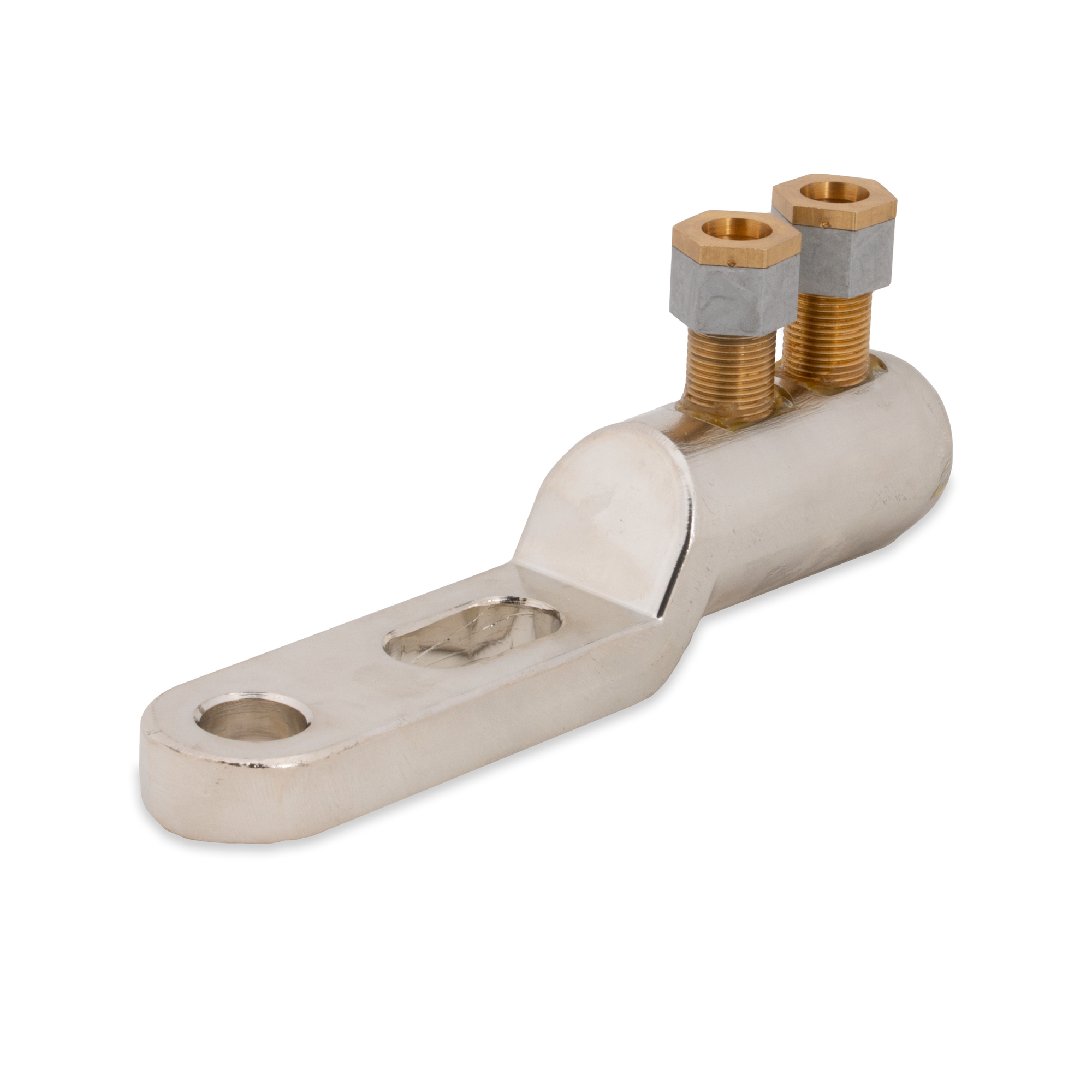

Mechanical cable lug LA150D13SB2
The dual hole cable lug is used for terminating conductors of cables up to 42 kV. Because of the shear head bolt construction, no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The lug is longitudinally watertight. It is suitable for aluminium and copper conductors: solid and stranded, sector shaped and circular.
| Code | LA150D13SB2 |
| GTIN | 6438389022872 |
| Name | Mechanical cable lug Al/Cu 25-150 mm², 2x Ø13 mm |
| Standards | |
|---|---|
| Standards | IEC 61238-1-3:2018 |
| Technical information | |
| Conductor material | Al/Cu |
| Cross section stranded circular | 25 ... 150 mm² |
| Cross section solid circular | 25 ... 150 mm² |
| Cross section stranded sector | 25 ... 95 mm² |
| Cross section solid sector | 25 ... 120 mm² |

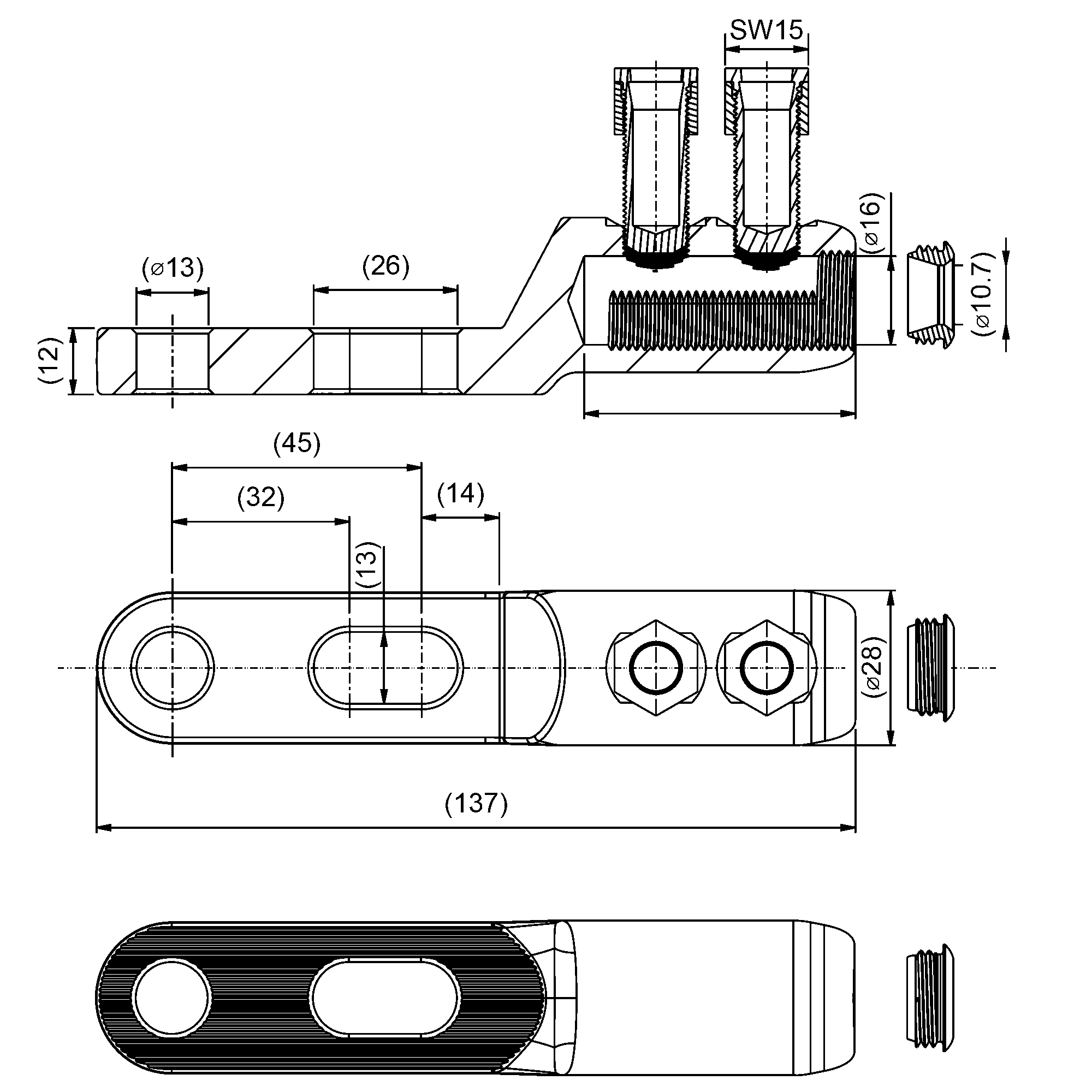

| Dimensions | |
| Weight | 0.33 lb |
| Height | 2.16 in |
| Width | 1.1 in |
| Length | 5.39 in |
| Conductor hole diameter | 0.62 in |
| Palm hole diameter | 0.51 in |
| Quantity of palm holes | 2 |
| Mechanical | |
| Tightening torque Nm | 18.5 Nm |
| Features | |
| For conductor shape | Sector, Stranded, Solid, Round |
| ETIM | |
| ETIM Class | EC001054 |
| Nominal cross section copper, RM | 25 ... 150 mm² |
| Nominal cross section copper, RE | 25 ... 150 mm² |
| Nominal cross section copper, SM | 25 ... 95 mm² |
| Nominal cross section aluminium, RM | 25 ... 150 mm² |
| Nominal cross section aluminium, RE | 25 ... 150 mm² |
| Nominal cross section aluminium, SM | 25 ... 95 mm² |
| Nominal cross section aluminium, SE | 25 ... 120 mm² |
| Material conductor | Aluminium/copper |
| Surface protection | Tinned |
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 11.81 in |
| Height | 0.39 in |
| Width | 5.98 in |
| Weight | 0.34 lb |
| Volume | 0.12 gal |
| Carton | |
| Size | 24 pcs |
| Depth | 8.58 in |
| Height | 4.96 in |
| Width | 8.58 in |
| Weight | 8.49 lb |
| Volume | 1.58 gal |
| Pallet package | |
| Size | 1296 pcs |
| Depth | 47.24 in |
| Height | 46.85 in |
| Width | 31.49 in |
| Weight | 502.67 lb |
| Volume | 301.79 gal |
