Heat shrink joint SJK4X50C

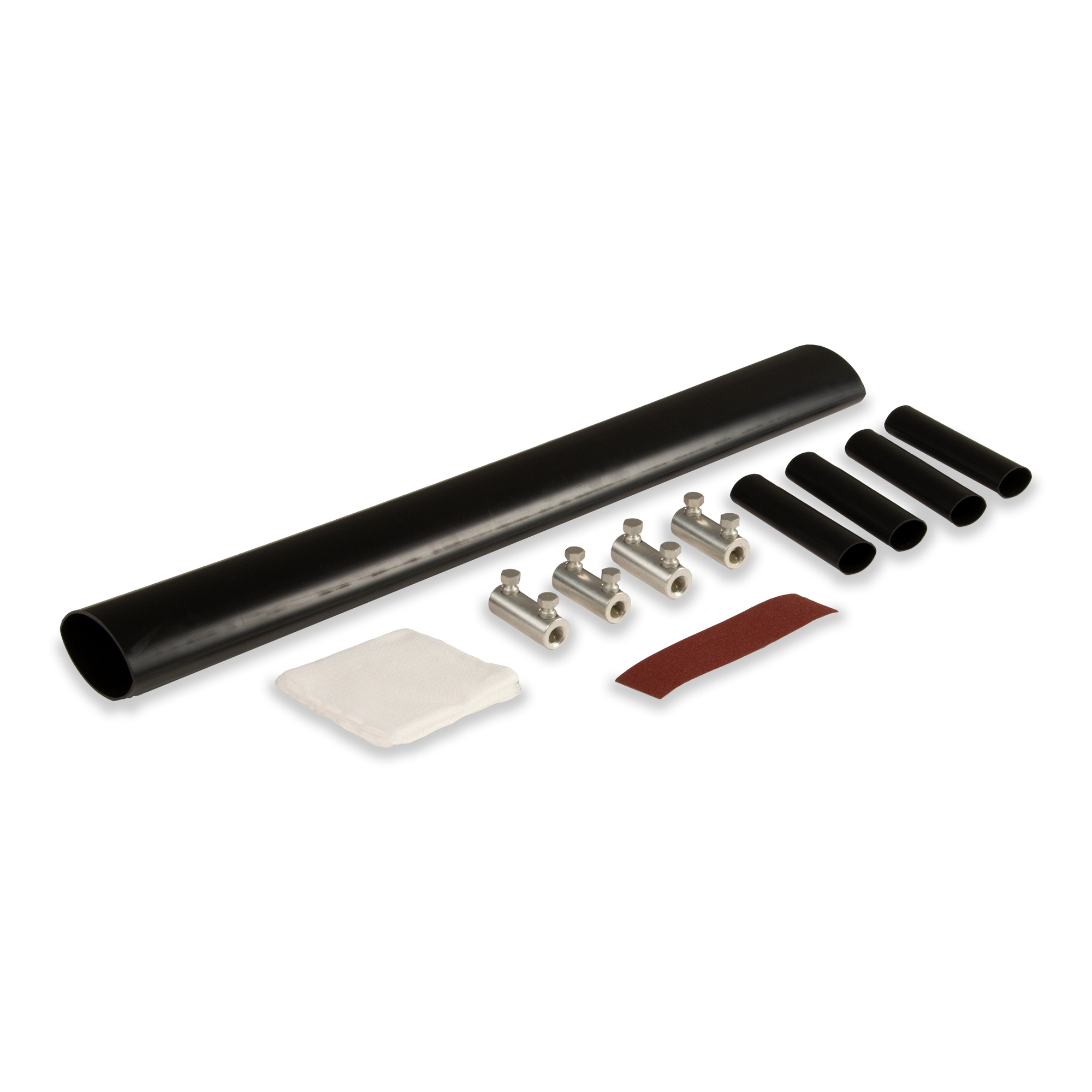

The joint kit is used for jointing 1 kV cables with plastic insulation and plastic outer sheath. The kit is suitable for 4 to 4 core and 4 to 3+1 core cables. The kit includes four screw connectors suitable both for aluminium and copper conductors, grinding and cleaning materials, four heat shrink tubes for insulation and one for outer protection.
| Code | SJK4X50C |
| GTIN | 6438100366506 |
| Name | Heat shrink joint 0,6/1 (1,2)kV 16-50mm² 4-core with connectors |
| Features | |
|---|---|
| Rated voltage U0/U (Um) | 0.6/1 (1,2) kV |
| Installed length (L) | 23.62 in |
| Shrink technique | Heat shrink |
| Connectors | 4 x SLJ4.47 |
| Accessory type | Straight through joint |
| Conductor material | Al/Cu |
| Conductor size round | 16 ... 50 mm² |
| Cable | |
| Number of cores | 4 |
| Material insulation | Polymeric |
| Dimensions | |
| Weight | 1 lb |
| Temperatures | |
| Installation temperature | -25 ... 50 °C |
| Operating temperature | -50 ... 90 °C |
| Storage temperature | 5 ... 40 °C |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 4 |
| Nominal cross section conductor | 16 ... 50 mm² |
| Connection accessories included | Screw connector with shear-off head |
| Halogen free | Yes |
| Carton | |
|---|---|
| Size | 10 pcs |
| Depth | 23.85 in |
| Height | 11.1 in |
| Width | 14.76 in |
| Weight | 11.4 lb |
| Volume | 16.92 gal |
| Pallet package | |
| Size | 100 pcs |
| Depth | 47.24 in |
| Height | 42 in |
| Width | 31.49 in |
| Weight | 158.13 lb |
| Volume | 270.59 gal |
