| Code | SJK4X4 |
| GTIN | 6438389019919 |
| Name | Heat shrink joint 0.6/1 (1.2) kV Al/Cu 1.5-4 mm², without connector |
-
What are you looking for?
-

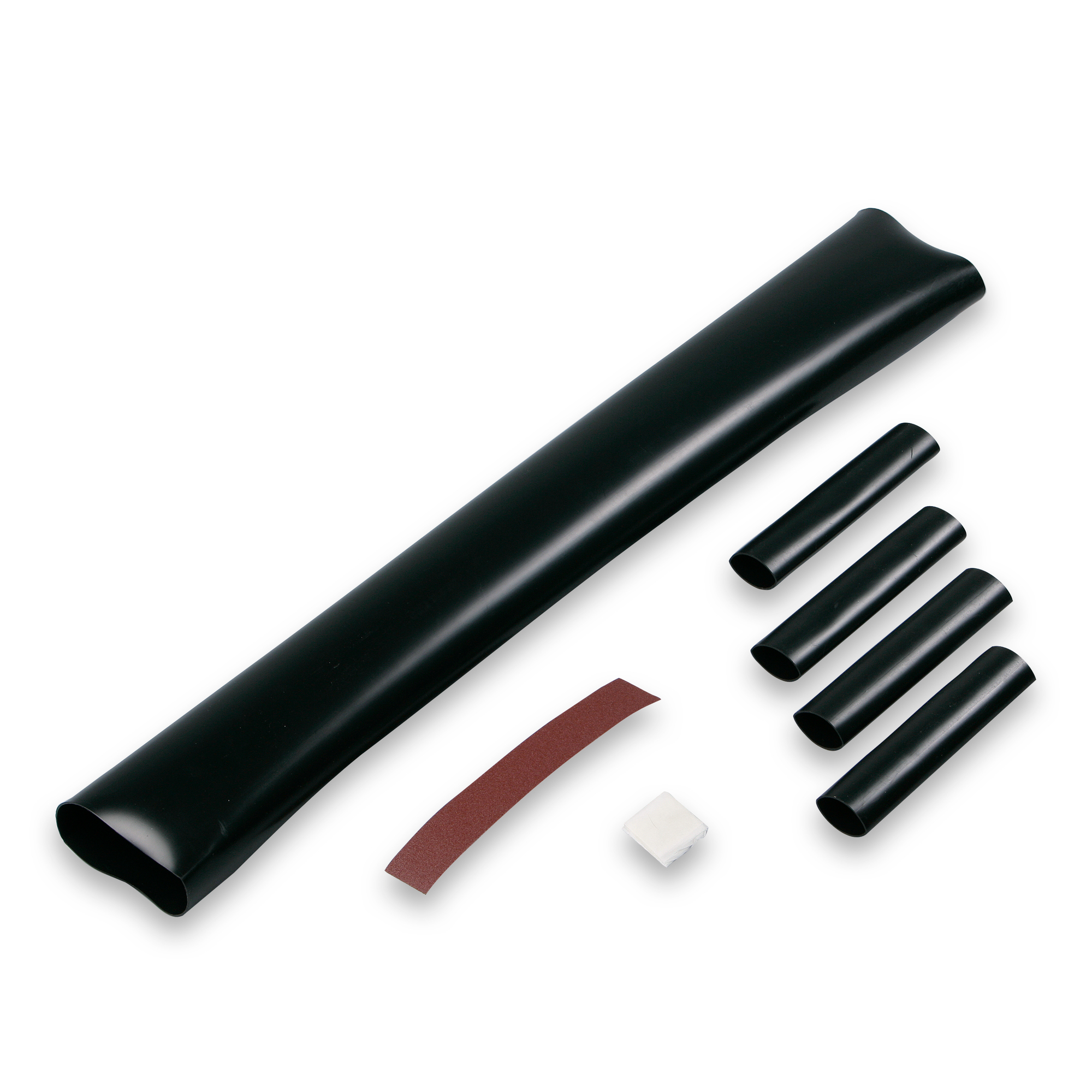

Heat shrink joint SJK4X4
Heat shrink joint SJK4X4
Technical information
Technical specifications
Technical specifications
| Dimensions | |
|---|---|
| Weight | 0.44 lb |
| Height | 1.18 in |
| Width | 3.14 in |
| Length | 20.07 in |
| Conductor size | Al/Cu 1.5-4 mm² |
| ETIM | |
| ETIM Class | EC001169 |
| Rated voltage U0/U (Um) | 0.6/1 (1.2) kV |
| Model | Heat-shrink |
| Insulating material | Plastic |
| For connection of paper- with plastic insulated cables | No |
| Number of conductors | 4 |
| Nominal cross section conductor | 1.5 ... 4 mm² |
| With concentric shielding | Yes |
| Connection accessories included | None |
| Halogen free | Yes |
Packaging
Packaging
| Plastic bag | |
|---|---|
| Size | 1 pce |
| Depth | 7.87 in |
| Height | 7.87 in |
| Width | 0.39 in |
| Weight | 0.66 lb |
| Volume | 0.1 gal |
| Carton | |
| Size | 50 pcs |
| Depth | 23.85 in |
| Height | 11.1 in |
| Width | 14.76 in |
| Weight | 34.42 lb |
| Volume | 16.92 gal |
